| KW / HP | 0.18 To 375 KW / (0.25 To 500 HP |
| RPM / Pole | 3000 RPM (2 Pole) 1500 RPM (4 Pole) 1000 RPM (6 Pole) 750 RPM (8 Pole) |
| Frame Size | 63 To 355 |
| Mounting | B3 Foot Mounted B5 Flange Mounted B35 Foot cum Flange Mounted B14 Face Mounted |
| Standard | IE2 |
| Body Enclosure | Cast Iron (Full Range) & Aluminium( 63 To 132 Frames Only ) |
| Duty | S1 |
| Enclosure | TEFC |
| Insulation class | F Class |
| Phase | 3 Phase Motor |
| IP degree of protection | IP55 |
| Terminal Box Location | RHS/LHS |
| Voltage | 415 V +-10% |
| Frequency | 50 Hz +-5% |
- VPI / VFD Suitable
- Thermisters
- Insulated Bearing
- Roller Bearings
- Space Heaters
- Force Cooling
- T.B Location: LHS / TOP
Warranty: Motors are covered by warranty under proper use, for faulty material or workmanship for 12 months from the date of commissioning or 18 months from the date of dispatch whichever is earlier.
Application:
Pump, Fan, Packing Machinery, Coiler/De-coiler, Agro Equipment, Food Processing Equipment, Agitator, Milling Machine, Drilling Machine, Crane & Hoists, Conveyors, Machine Tool, Material Handling, Crusher, VSI, Roller Tables, Hammers / Press, Ball Mill, Hot Dryers, Heavy Duty Conveyors, Mixers, Reactors, Expellers, Jaw Crushers, Disintegrators.
Description:

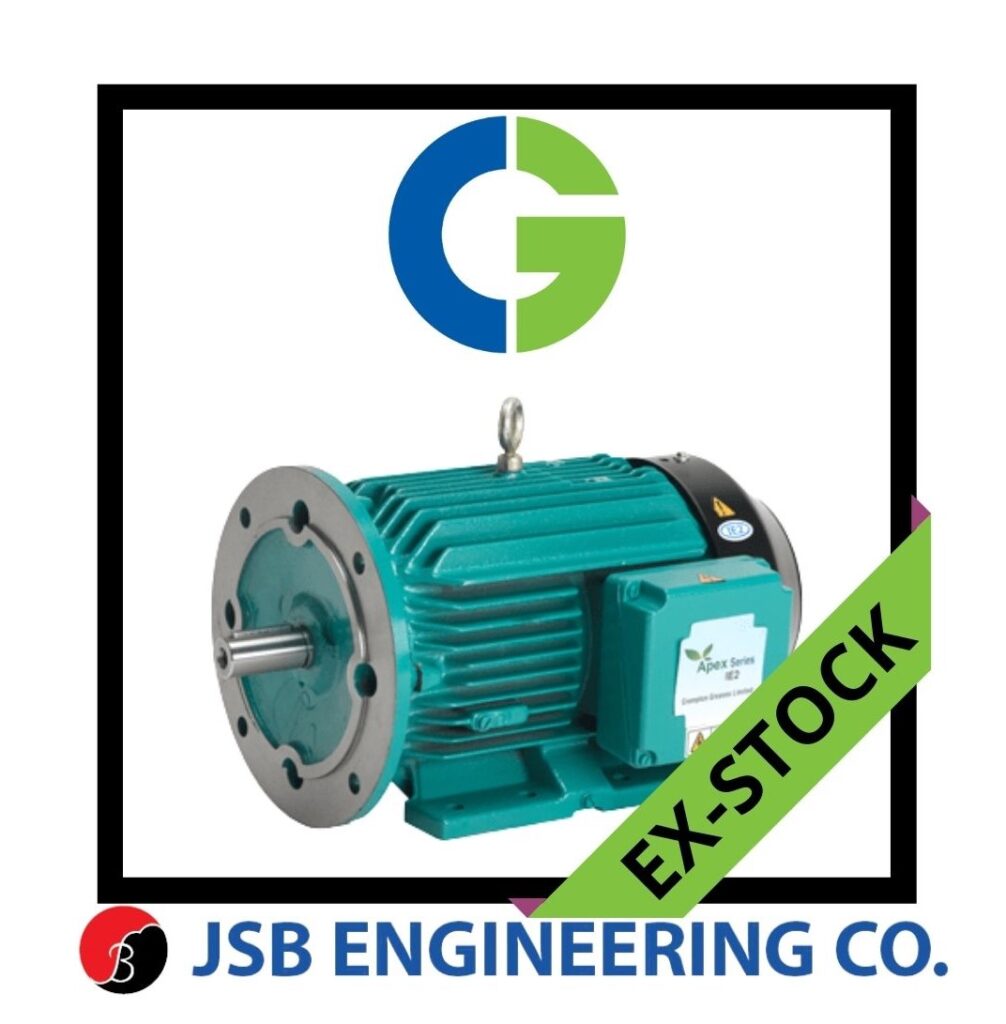

We here at Jsb engineering are the authorised dealer of Crompton Greaves IE2 Motors having range from 0.18 KW to 375 KW & 0.25 HP to 500 HP. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Crompton IE2 motors available in 3000 RPM, 1500 RPM, 1000 RPM & 750 RPM with respect to 2 Pole, 4 Pole and 6 Pole & 8 Pole with cast iron body (Full Range) & Aluminium body (63 To 132 Frames Only) with S1 duty. Available Frame sizes are from 63 to 355 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting), B14 (Face Mounting) available with Terminal Box Position at RHS Side. IE2 motors are available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection. Ambient temperature of Crompton IE2 motors are 20 °C to +50° C.
