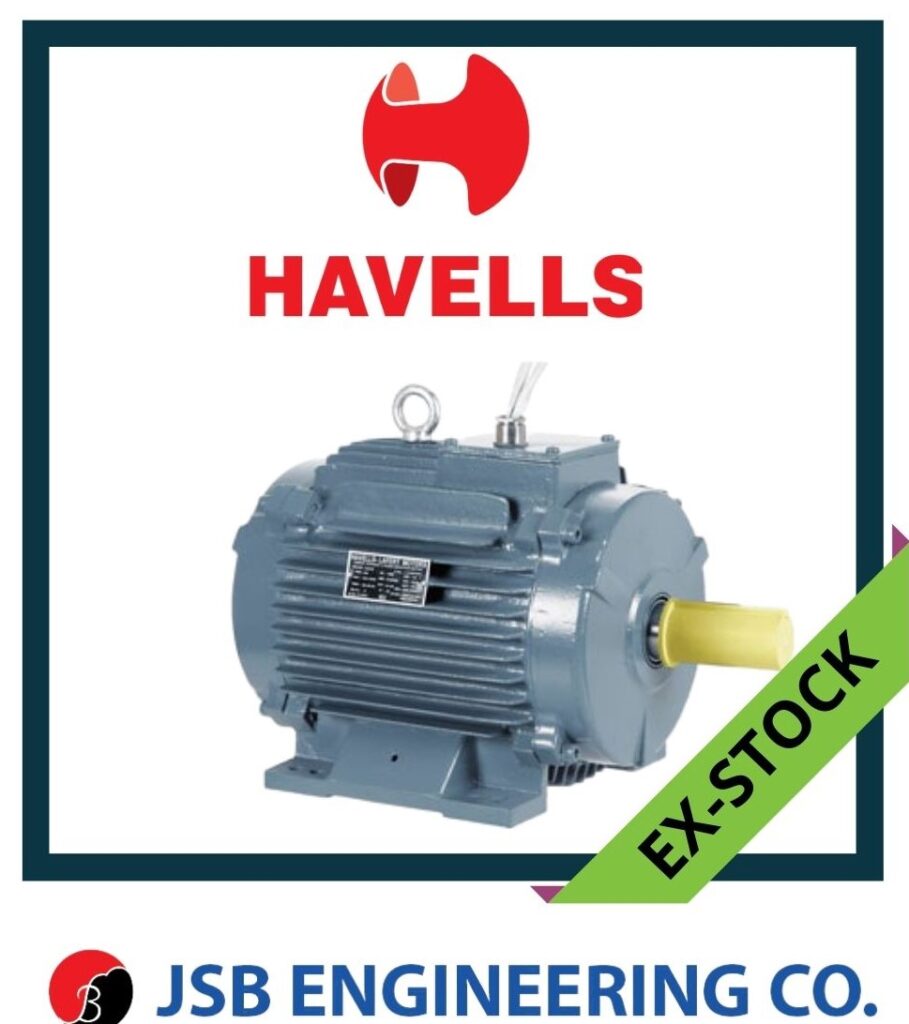

FEATURES / SPECIFICATION
( IEC 60034-30-2008 & DIMENSION AS PER IS: 1231 & IS 2223 )
| Voltage | 415 V |
|---|---|
| Ambient temperature | 50 Degree Celsius |
| RPM/Pole | 3000 (2 pole)/1500 (4 pole)/1000 (6 pole)/750(8 pole) |
| Standard | Smoke Motors |
| Terminal box location | Top |
| KW/HP | 0.37-22 KW/ (0.5-30 hp) |
| Body enclosure | Cast Iron |
| Duty | S4 |
| Speciality | Suitable for various Duty cycle operations & higher starts / stops per hour |
| Enclosure | TEFC |
| Frame size | 71 – 180 |
| Frequency | 50 Hz |
| IP degree of protection | IP55 |
| Insulation class | F Class |
| Mounting | B3 Foot Mounted/B5 Flange Mounted/B35 Foot cum Flange Mounted |
- VPI/VFD Suitable
- Thermisters
- Insulated Bearing
- Roller Bearing
- Space Heater
- Forced cooling
- T.B Location: LHS/RHS
Warranty: Motors are covered by warranty under proper use, for faulty material or workmanship for 12 months from the date of commissioning or 18 months from the date of dispatch which ever is earlier.
Application:
The Crane Motors Are Duty Type Rated For Developing High Starting Torque With Low Starting Current. The Motors Are Designed To Withstand Stresses Due To Frequent Starts/Stops And Reversals. Also, A Rapid Acceleration Is Achieved By High Pull Out Torque/Rotor Inertia Ratio.
1. Crane Duty and Hoist Duty Applications Including LT & CT Drives.
2. Material Handling.
3. Weirs and Sluices.
4. Lift Duty.
5. Auxiliary Motors in Rolling Mills.
6. Material Handling Equipment.
7. Conveyors
8. Loader / Unloader
9. Winch
