• Manual release handle (Above 2 Hp Motors)

Warranty: Motors are covered by warranty under proper use, for faulty material or workmanship for 12 months from the date of commissioning or 18 months from the date of dispatch whichever is earlier.

Application:

Application of AC Three Phase Brake Motors Are in Lifts, Hoists, Conveyors and Other Applications Where the Frequency of Switching the Brake On-Off is Very Low.
1. Heavy Duty Loads.
2. Lifting Applications (i.e. Elevator)
3. Cranes (Lifting Bridge Movement)
4. Saws, Conveyors
5. Textile Machinery
6. Rolling Mills
7. Cranes & Hoists
8. Material Handling Equipment
9. Machine Tools

Description:

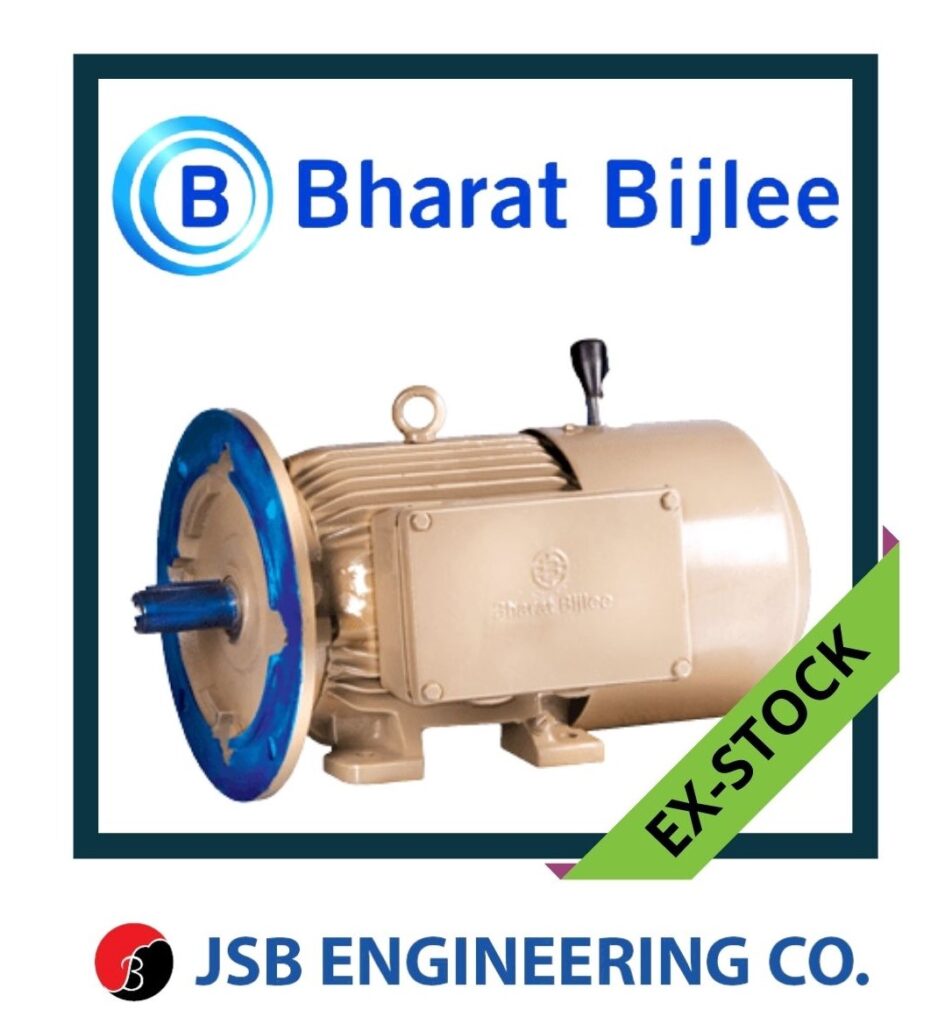

We here at Jsb engineering are the dealer of Bharat Bijlee Brake Motors having range from 0.25 KW to 9.3 KW & 0.33 HP to 12.5 HP with DC Brakes having manual release handle for above 2 hp motors. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Bharat Bijlee Brake Motors are available in 1500 RPM, 1000 RPM & 750 RPM with respect to and 4 Pole, 6 Pole & 8 Pole with cast iron body. This motors are compatible with S1 & S4 duty. Available Frame sizes are from 71 to 132 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting) available with Terminal Box Position at RHS Side. Bharat Bijlee Brake Motors are available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection.
